SELF-CLEANING PLATE MAGNETS
Advanced magnetic separation systems for the continuous removal of ferrous contaminants from bulk material streams without manual cleaning.
MAGNETIC SEPARATION • INDUSTRIAL MAGNETS

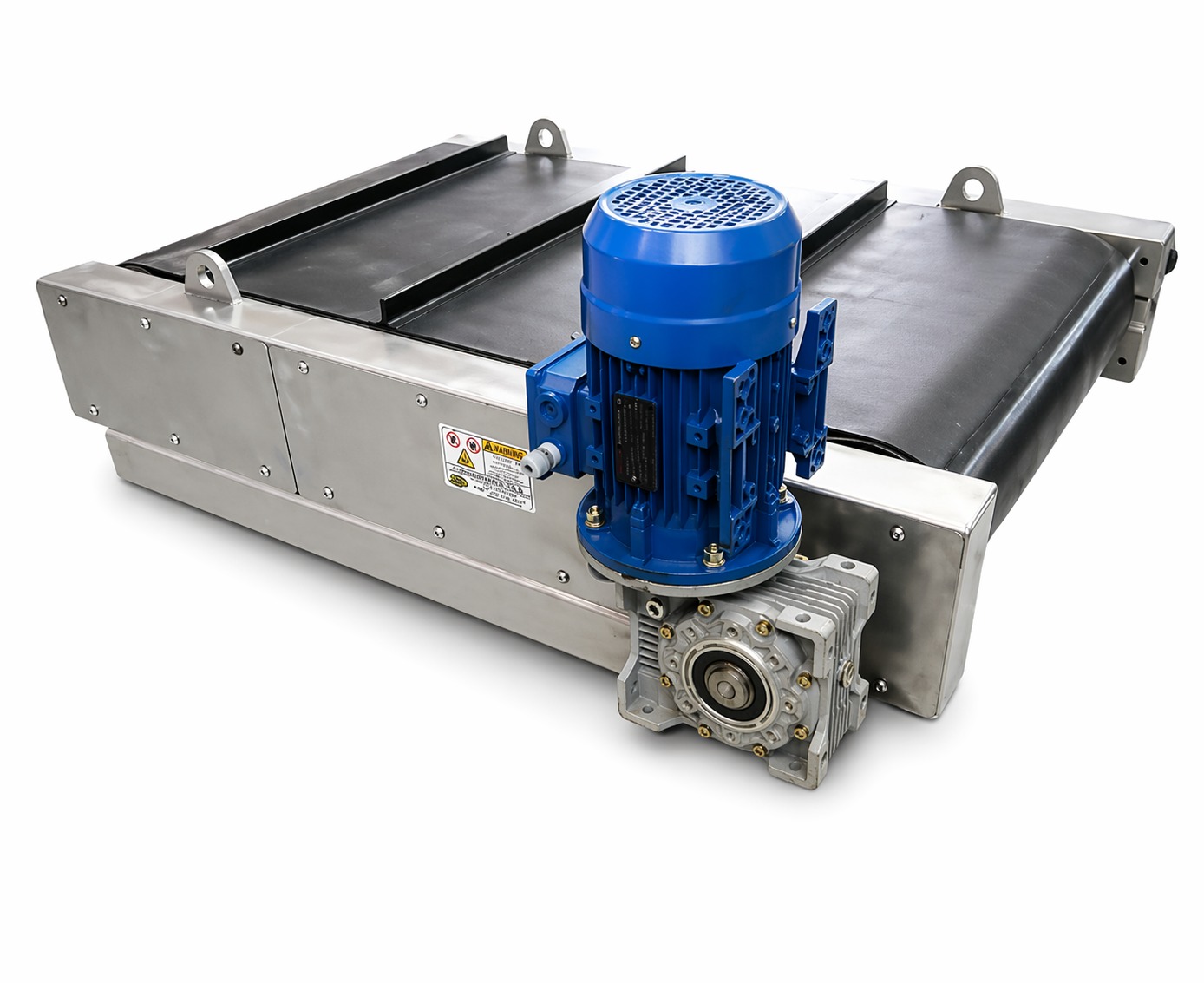

Self-Cleaning Plate Magnets
These units are built with heavy-duty construction for harsh operating environments and use an automatic cleaning mechanism to continuously discharge captured ferrous material away from the product flow. The result is reliable magnetic separation, low maintenance requirements, and high-efficiency operation in demanding processing environments.
They are well suited to mining, quarrying, recycling, aggregate handling, cement plants, food and agricultural processing, dry bulk conveying, and general industrial manufacturing applications.
| Magnet Type | Permanent self-cleaning plate magnet system |
|---|---|
| Magnetic Strength | Up to 10,000+ Gauss (depending on configuration) |
| Construction | Heavy-duty steel or stainless steel housing with internal magnetic assembly |
| Design | Self-cleaning plate with automated discharge system (belt or stripper mechanism) |
| Installation | Mounted above conveyor belt or chute (inline or cross-belt positioning) |
| Material Flow | Suitable for continuous conveyor and chute applications |
| Cleaning System | Automatic cleaning via moving belt, scraper, or pneumatic system |
| Operating Temperature | Up to 80°C standard (higher temperatures available on request) |
| Power Supply | No power required for permanent magnets (motor required for cleaning system if applicable) |
| Application | Continuous removal of ferrous contaminants from bulk materials |
| Customisation | Available in various sizes, suspension heights, and magnetic strengths to suit applications |
Reliable Continuous Magnetic Separation
Self-cleaning plate magnets are engineered for the continuous extraction of tramp iron from bulk materials moving along conveyor belts, chutes, and other product flow systems. These systems generate a powerful magnetic field to attract and capture ferrous contaminants, helping maintain product purity while protecting downstream equipment. Built for demanding industrial environments, they combine robust construction, strong permanent magnetic performance, and automatic cleaning functionality for uninterrupted operation, reduced labour, and improved productivity.
Ensure Contaminant-Free Production with SC Plate Magnets
SC Plate Magnets are vital for maintaining product purity, equipment protection, and compliance in food, plastics, grain, and recycling operations.
