High-Intensity Magnetic Separation
Designed to remove ferrous contamination from gravity-fed material flow in hoppers, chutes and processing lines.
DOOR MAGNETS
High-intensity door magnets for gravity-fed hoppers, chutes and processing lines where easy access, cleaning and ferrous contamination removal are critical.
HACCP • CHUTE MOUNTED • EASY CLEAN

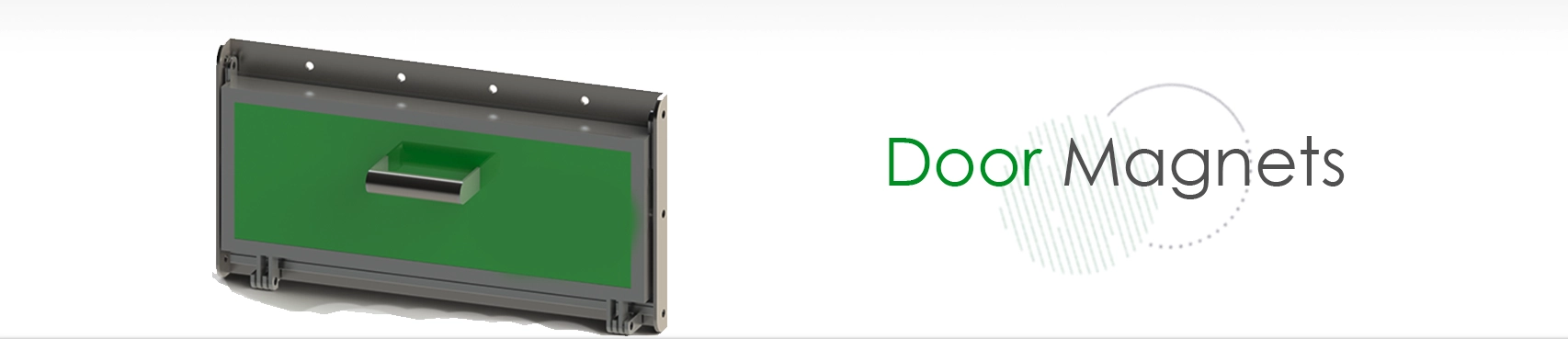

Door Magnets

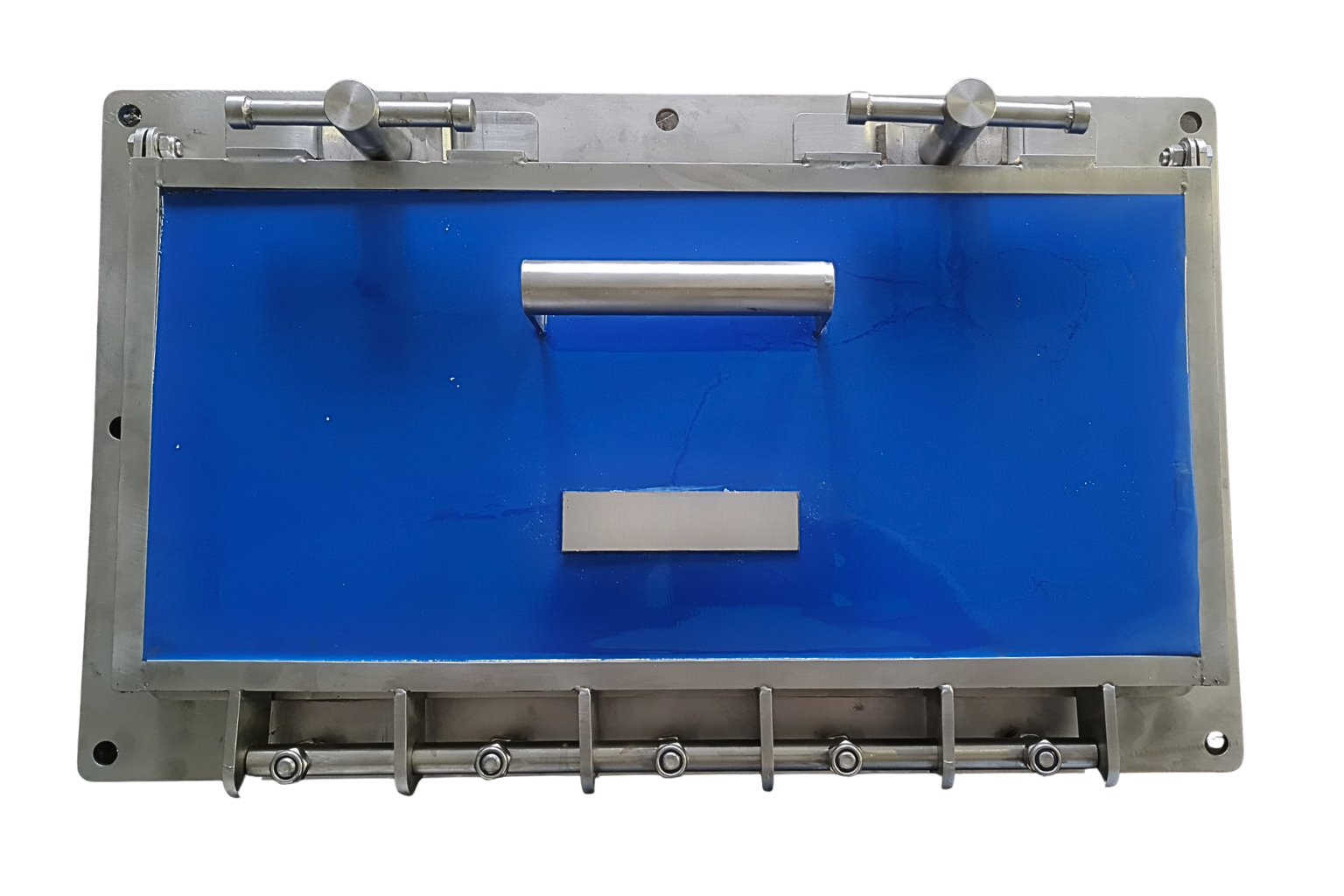

Door Magnets are high-intensity magnetic separators for gravity-fed hoppers, chutes and processing lines. The magnetic assembly is mounted within a hinged access door, allowing operators to quickly inspect and clean the magnet while maintaining effective ferrous contamination removal. Designed with an easy-clean stainless hinge plate, adjustable heavy-duty hinge and step-face capture, Door Magnets help protect downstream equipment, improve product purity and support HACCP-aligned contamination control.
Door Magnets Overview
Door Magnets are high-intensity magnetic separators designed for gravity-fed applications where easy access and maintenance are important. The magnetic assembly is mounted within a hinged access door, allowing operators to quickly inspect and clean the magnet while maintaining effective ferrous contamination removal. Door Magnets are commonly installed in hoppers, chutes, and processing lines where product purity and equipment protection are essential.
Designed for vertical, horizontal, or angled chutes, door magnets include an easy-clean stainless hinge plate, adjustable heavy-duty hinge, and step-face capture to hold ferrous debris out of the flow. Built to HACCP standards for food applications, they provide deep-reach magnetic separation with minimal flow restriction.
Door Magnets Overview
Door Magnets are high-intensity magnetic separators designed for gravity-fed applications where easy access, cleaning, product purity and equipment protection are important.
Hinged Access Door
The magnetic assembly is mounted within a hinged access door, allowing operators to quickly inspect and clean the magnet.
Easy Maintenance
Easy access supports faster inspection, cleaning and maintenance while maintaining effective ferrous contamination removal.
Hoppers, Chutes and Processing Lines
Commonly installed in hoppers, chutes and processing lines where product purity and equipment protection are essential.
Vertical, Horizontal or Angled Chutes
Designed for vertical, horizontal or angled chutes where ferrous contamination must be removed from material flow.
Step-Face Capture
Step-face capture helps hold ferrous debris out of the product stream after separation.
Industries Served
Door Magnets are suitable across food, grain, plastics, chemical, recycling, cement, coffee, wood, charcoal, carbon, fertiliser and general industrial applications.
Food Processing
Suitable for food processing applications requiring HACCP-aligned ferrous contamination control.
Grain Milling
Suitable for grain milling operations where metal contamination must be removed from grain and milled product streams.
Plastics Industry
Suitable for plastics processing where pellets, granules, powders and regrind material require magnetic protection.
Chemical Industry
Suitable for chemical processing environments where product purity and downstream equipment protection are important.
Recycling
Suitable for recycling operations where ferrous contaminants must be removed from mixed material streams.
Cement Industry
Suitable for cement industry applications where robust chute-mounted separation is required.
Coffee Industry
Suitable for coffee processing where ferrous contamination must be removed from beans or processed material streams.
Wood Industry
Suitable for wood processing and timber-related material handling applications where metal contamination may be present.
Charcoal Industry
Suitable for charcoal processing where ferrous particles must be removed from dry material flow.
Carbon Industry
Suitable for carbon processing where ferrous contamination must be removed from product streams.
Fertilizer Industry
Suitable for fertilizer processing and handling applications where magnetic protection supports product quality and equipment safety.
Key Features
Gravity-Fed Application Design
Designed for gravity-fed applications where product flows through hoppers, chutes or processing lines.
Easy-Clean Stainless Hinge Plate
Includes an easy-clean stainless hinge plate for faster cleaning and practical maintenance access.
Adjustable Heavy-Duty Hinge
Built with an adjustable heavy-duty hinge to support reliable access and long-term operation.
Minimal Flow Restriction
Designed to remove ferrous contamination while helping maintain efficient product flow.
Nonmagnetic Stainless Steel Build
Built in nonmagnetic stainless steel for durability and process compatibility.
Pressurised Line Compatible
Suitable for pressurised line applications where correct specification and integration are required.
Specifications
| Gauss | 1,500–12,000 surface gauss; certificates included. |
| Temperature | 80–350 °C ratings available. |
| Lines | Pressurised line compatible; built in nonmagnetic stainless steel. |
| Installation | Suitable for hoppers, chutes, gravity-fed processing lines and cut-in flange installation. |
| Cleaning | Hinged access door and easy-clean stainless hinge plate support quick inspection and cleaning. |
Specifications are the intellectual property of Techco Power Engineering and may not be reproduced without written consent.
Key Benefits
Improved Product Purity
Helps remove ferrous contamination before it reaches downstream equipment or finished product.
Equipment Protection
Protects downstream processing equipment from damaging tramp metal.
Quick Inspection and Cleaning
The hinged access door allows operators to inspect and clean the magnet quickly.
Reduced Downtime
Easy access and cleaning help reduce maintenance time and support more reliable operation.
Food and Industrial Suitability
Suitable for HACCP-aligned food applications as well as industrial processing environments.
Fast Retrofit
Cut-in flange installation fits your existing chute geometry. Speak to a product specialist to select the correct Door Magnet for your product flow, industry and cleaning requirements.
