Sanitary Liquid Line Protection
Designed for processing lines handling liquids such as milk, juice, chocolate, oils, water and chemical products.
LIQUID & FLUID TRAP MAGNETS
Sanitary, pressure-tested magnetic traps for liquid processing lines including food, dairy, beverage, pharmaceutical, chemical, chocolate, oil and water purification applications.
SANITARY LIQUID LINES • JACKETED OPTIONS • PRESSURE TESTED
Liquid & Fluid Trap Magnets

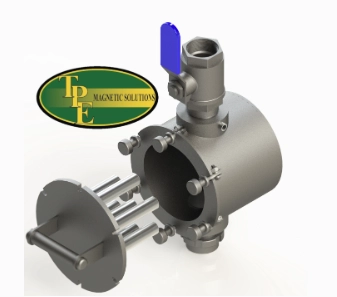

Liquid and Fluid Trap Magnets are sanitary, pressure-tested magnetic separators designed to remove ferrous contamination from liquid processing lines. They are used in food processing, pharmaceuticals, chemical processing, juice, milk, water purification, beverage production, dairy, chocolate, oils, coconut oil, butter, hydraulic systems, chlorine and specialist chemical applications. Standard, jacketed and special configurations are available to suit product temperature, flow, pressure and hygiene requirements.
Brochure Pending
View Liquid & Fluid Trap Magnets Gallery
Liquid & Fluid Trap Magnets Overview
Liquid and Fluid Trap Magnets are designed for use in processing lines handling liquids such as milk, juice, chocolate, oils, water and chemical products. These sanitary magnetic systems remove ferrous contamination from liquid product streams while supporting hygienic operation, pressure-tested performance and easy cleaning.
Standard fluid traps are suitable for ambient-temperature liquids such as milk, juice and water. Jacketed fluid traps maintain product temperature through hot or cold water circulation, making them suitable for chocolate, oils, butter and temperature-sensitive products. Special liquid traps can be configured for hydraulic, chlorine, chemical and other specialised liquid processing applications.
Liquid & Fluid Trap Magnets Overview
Liquid and Fluid Trap Magnets remove ferrous contamination from liquid product streams while supporting sanitary operation, pressure-tested performance and easy cleaning.
Ferrous Contamination Removal
Captures ferrous particles from liquid product streams before they reach downstream processing, filling or packaging equipment.
Pressure-Tested Construction
Pressure-tested construction with sanitary sealing supports reliable use in liquid processing environments.
Easy-Clean Operation
Built for hygienic operation and easy cleaning to support food, beverage, dairy, pharmaceutical and chemical applications.
Types
Liquid and Fluid Trap Magnets are available in standard, jacketed and special configurations depending on product temperature, pressure, viscosity and industry application.
Standard Fluid Trap
Suitable for room-temperature liquids such as milk, juice, water and other ambient-temperature product streams.
Brochure Pending
Jacketed Fluid Trap
Maintains product temperature for products such as chocolate, cooking oil, coconut oil, butter and other temperature-sensitive liquids using a heated or cooled jacket.
Brochure Pending
Special Fluid Trap / Liquid Trap
Custom liquid trap configurations can be supplied for hydraulic magnet applications, chlorine industry use, chemical industry requirements and other specialised liquid processing environments.
Brochure Pending
Industries Served
Liquid and Fluid Trap Magnets are used across food, pharmaceutical, chemical, dairy, beverage, oil, chocolate, water purification, hydraulic and specialised liquid processing industries.
Food Processing
Used in food processing lines to remove ferrous contamination from liquid or semi-liquid product streams.
Pharmaceuticals
Suitable for pharmaceutical liquid processing where sanitary magnetic separation and contamination control are required.
Chemical Industry
Used in chemical processing lines where ferrous particles must be removed from liquid product streams.
Juice Industry
Suitable for juice processing applications requiring sanitary ferrous contamination removal.
Milk Industry
Used in milk processing lines to protect product purity and downstream equipment.
Water Purification
Supports water purification applications where ferrous particle removal is required.
Beverage Production
Suitable for beverage production lines requiring sanitary magnetic protection.
Dairy Industry
Used in dairy processing applications, including temperature-sensitive liquid products.
High Temperature Chemical Processing
Jacketed versions can support high-temperature chemical processing where product temperature must be maintained.
Chocolate
Jacketed fluid traps are suitable for chocolate processing where temperature control and sanitary separation are important.
Oil Industry
Used for oil processing applications where ferrous contamination must be removed from liquid product streams.
Coconut Oil Industry
Suitable for coconut oil processing where temperature control and contamination removal may be required.
Butter Industry
Jacketed versions can support butter and similar temperature-sensitive product streams.
Hydraulic Magnet Applications
Special fluid traps can be configured for hydraulic magnet applications and related liquid systems.
Chlorine Industry
Special liquid trap configurations can be supplied for chlorine industry requirements.
Key Features
Food-Grade Stainless Steel
Constructed from food-grade stainless steel with sanitary finishes.
Sanitary Sealing
Sanitary sealing supports hygienic operation in liquid processing lines.
Pressure-Tested Design
Pressure-tested up to 8 bar depending on specification and configuration.
High Magnetic Strength
Available from 2,500 – 12,000 surface gauss depending on contamination risk and application.
Temperature-Control Options
Jacketed models can maintain product temperature through hot or cold water circulation.
Custom Inlet and Outlet Sizes
Configured to match inlet and outlet sizes for fast installation and easier maintenance.
Key Benefits
Protects Liquid Lines
Removes ferrous contamination before it reaches downstream processing, filling or packaging equipment.
Supports Product Purity
Improves product purity in food, beverage, dairy, pharmaceutical, chemical and oil processing applications.
Hygienic Operation
Sanitary construction and easy-clean design support hygienic processing requirements.
Temperature Control
Jacketed versions help maintain temperature for products such as chocolate, oils, coconut oil and butter.
Flexible Configuration
Standard, jacketed and special trap configurations can be matched to flow, pressure, temperature and product requirements.
Specifications
Final specifications depend on product type, viscosity, flow rate, pressure, temperature, inlet and outlet size, hygiene requirement and contamination risk.
| Gauss | 2,500 – 12,000 surface gauss. |
| Pressure | Pressure-tested up to 8 bar with sanitary sealing. |
| Compliance | HACCP Magsep build standard with certification supplied. |
| Construction | Food-grade stainless steel construction with sanitary finishes. |
| Types | Available as standard fluid traps, jacketed fluid traps and special liquid trap configurations. |
| Temperature Control | Jacketed versions can maintain product temperature through hot or cold water circulation. |
| Installation | Configured to match inlet and outlet sizes for fast installation and maintenance. |
Specifications are the intellectual property of Techco Power Engineering and may not be reproduced without written consent.
Sanitary Construction Note
All units are constructed from food-grade stainless steel with sanitary finishes.
Protect Liquid Lines
Configured to match your inlet and outlet sizes for fast installation and maintenance. Speak to a product specialist to select the correct Standard, Jacketed or Special Liquid Trap Magnet for your liquid processing line.
